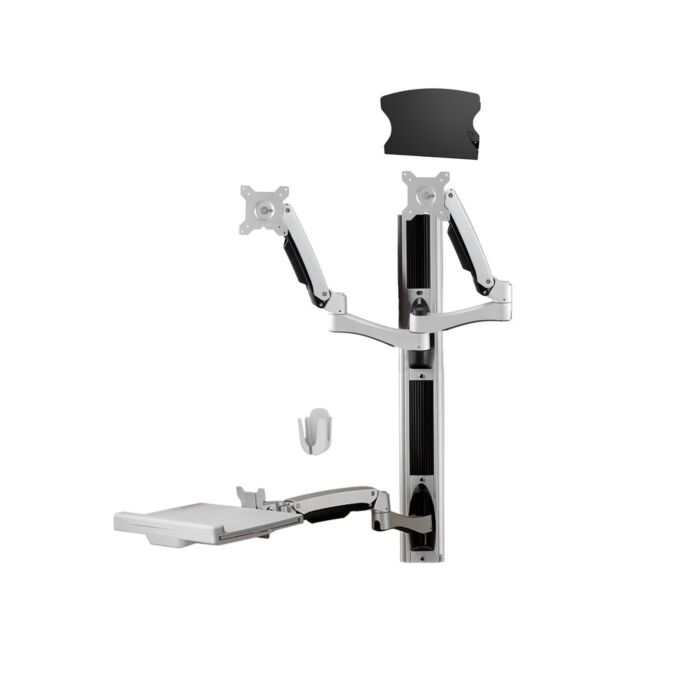

Dual Sit-Stand Combo Workstation Wall Mount System with Extended Display Arm

Our AMR2AWSV3 dual display combo wall mount workstation system provides an ergonomic and convenient method to create work efficiencies and maximum space utilization. Designed with an extended arm to hold the displays and an additional arm for the keyboard tray, this sit-stand wall mount system allows for easy collaboration and high flexibility in both function and ease of use.

The Mount system comes with a CPU wall mount holder to allow for the easy storage and accessibility of the main processing unit and a mouse holder to keep the station neat and organized.

• Dimension(W*H*D): 1150 x 880 x 201mm ( 45.26" x 34.65" x 7.91" )
• Screw Type: M4
• Material: Steel/Aluminum Alloy/Plastic/Rubber

Hinge Module

• Swivel(Hinge): +/-90°
• Tilt(Hinge): -20° ~ + 90°
• Tilt(Keyboard): 0 ~ 90°
• Pivot: 360°
• User Torque Adjust: Available

Display

• Mounting Pattern: 100x100 / 75x75 mm
• Panel Size Support: 32”
• Support Weight (Per Arm): 2~10kg(4.41~22.05lbs)
• Support Weight (Keyboard): 2.5kg(5.51lbs)
• Support Max.Weight(CPU holder): 18Kg(39.67 lbs)



Height Adjust

• Height Adjustment Range (Per Arm): 315 mm (12.40")
• Tension Torque Adjust: Yes
• Tilt (Per Arm): - 30° ~ + 65°


• Maximum Working Space: 449 x 207 mm ( 17.68" X 8.15" ) for Keyboard Tray


• Cable Management: Yes


• RoHS/REACH Compliance: Yes
