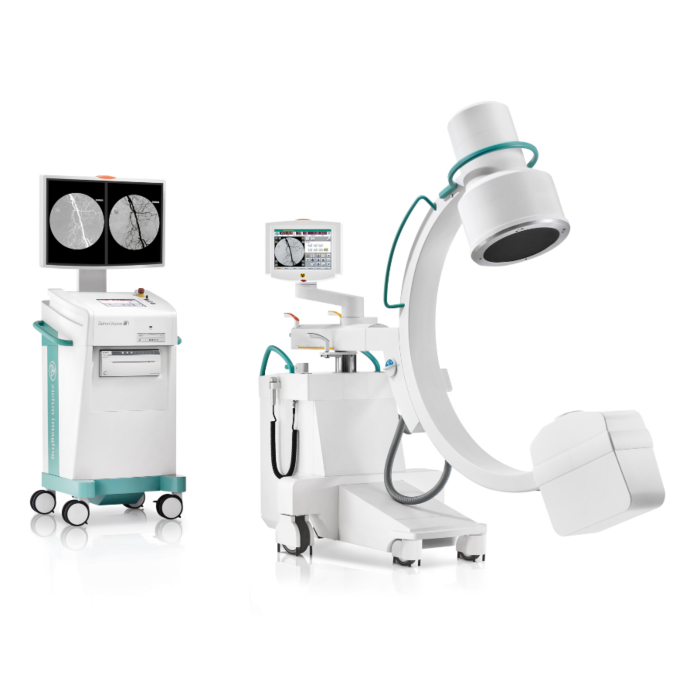

Del Medical Vision R C-Arm System

Name: Del Medical Vision R C-Arm System
SKU: Ziehm Vision R
Availability: InStock

Be the first to review this product

$0.00

CALL FOR PRICING

SKU

Ziehm Vision R

Features

The Vision R is a surgical, feature-rich mobile system designed to perform a wide range of fluoroscopic applications. Its refined movement capabilities, high resolution, and dose efficiency make it a smart solution for procedures in surgery, orthopedics, urology, cardiology, and pain management. The Vision R’s use of a rotating anode and high-powered
monoblock pulsing generator ensures clean, sharp images regardless of patient size. With variable pulse widths, the Vision R can handle all general surgery applications ranging from catheter placement to cardiac operations. Easily capture objects at up to 30 frames per second to achieve the highest quality images without missing a moment. In addition, the Vision R offers 9” or optional 12” image intensifiers to better accommodate digital subtraction angiography (DSA) procedures.

Benefits

High frequency pulsing generator
Rotating anode with variable pulse width
High resolution 1 k x 1 k CCD camera
9" image intensifier, 12" option available
Advanced Active Cooling
SmartDose Technology
Object Detected Dose Control (ODDC) Technology

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Features

Benefits

High frequency pulsing generator
Rotating anode with variable pulse width
High resolution 1 k x 1 k CCD camera
9" image intensifier, 12" option available
Advanced Active Cooling
SmartDose Technology
Object Detected Dose Control (ODDC) Technology

Dimensions, Weight, and Mechanics

Motor-driven vertical travel:	17" (43 cm)
Horizontal Travel:	9" (22 cm)
Orbital rotation:	-90° / +45° ( 9” (23 cm) i.i.) / +25° (12” (31 cm) i.i.)
Angulation:	±225°
Swiveling (panning):	±10°
Source/image receptor distance:	38" (97 cm)
C-arm vertical free space:	30" (76 cm)
C-arm depth:	27" (68 cm)
Width:	32" (80 cm)
Length:	74-83” (188-210 cm)
Height:	70-87” (179-222 cm)
C-arm mobile stand weight:	- 9” I.I.: 838 lbs. (380 kg) - 12” I.I.: 877 lbs. (398 kg)
Monitor cart weight:	353 lbs. (160 kg)

X-ray Generator

Generator type:

- Monoblock
- 20kHz high frequency
- microprocessor-controlled

Image Intensifier

Type:	Cesium Iodide
DQE (IEC):	65%
9 inch (23 cm) I.I:	- Central resolution: 9-6-4” (23-15-10 cm): 52-58-68 lp/cm - Contrast ratio: 30:1
12 inch (30.5 cm) I.I::	- Central resolution: 12-9-6” (31-23-15 cm): 44-50-56 lp/cm - Contrast ratio: 22:1
Grayscale:	4096 shades of gray (12 bit)

Monitor Cart

Monitors:	- Screen size: 18.1” (46 cm) - Native resolution: 1280 x 1024 pixels - Viewing angle (horizontal/vertical): 170° - Contrast ratio: 600:1 - Dimensions: 16 x 13 x 3” (41 x 34 x 7 cm)
User Interface:	- TFT touchscreens on C-arm and monitor cart - synchronized - intuitive icons for easy use - multi-lingual

Digital Image Processing

Processing functions:	- Recursive filter: 4 levels (out of 16) - Stack filter (last image hold): 5 levels - Edge enhancement filter: 5 levels - Zoom: 3 levels - Windowing and step windowing - Digital image rotation and reversal without radiation - Grayscale inversion - Image cropping
Cine Loop:	- Sequential image storage and display 1, 2, 5, 10, 15, 30 frames/sec - Cine loop start, stop and replay rate controls

Digital Memory

Storage capacity:	4 levels (out of 16)
Memory matrix:	1024 x 1024 pixels
Image matrix:	1024 x 1024 pixels
Digital image processing:	up to 32 bit
Grayscale:	4096 shades of gray (12 bit)
