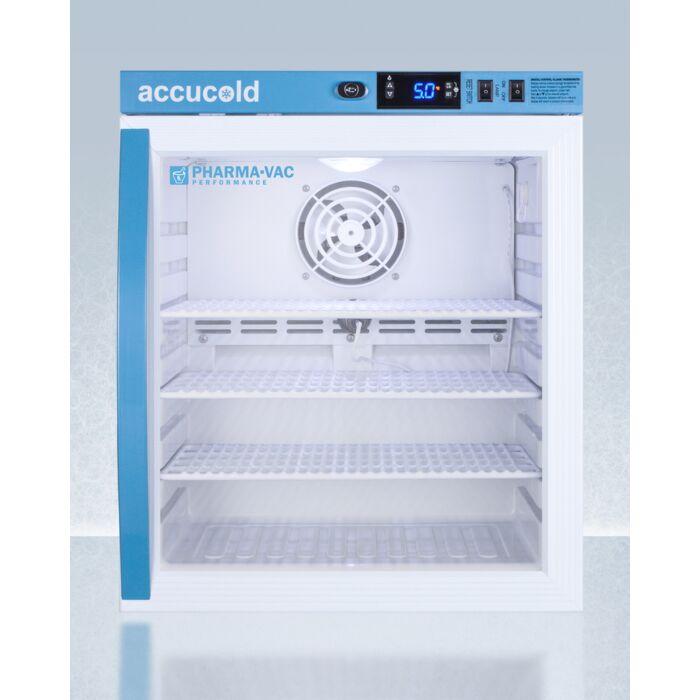

2.83 Cu.Ft. Vaccine Refrigerator Clear Door ADA Height

Special Price $1,398.00 Regular Price $1,935.00
3-5 Business Days
SKU
ARG31PVBIADA

Pharma-Vac Performance Series are upright all-refrigerators designed and purpose-built for pharmacy, medication, and vaccine applications to support meeting CDC/VFC guidelines.



The ARG31PVBIADA is a 2.83 cu.ft. all-refrigerator with a temperature range of +2°C to +8°C. Sized at 32" high to fit under lower counters complying with ADA guidelines for accessibility. It is designed for freestanding  or recessed installation. The microprocessor temperature controller is externally located to minimize door openings, helping to protect stored contents from ambient temperature. The buffered temperature probe is encased in a glycol-filled bottle to better simulate temperature of the stored product, with an additional sensor that reads air temperature to ensure superior temperature control.



The current and min/max temperature display is viewable in Celsius or Fahrenheit to the nearest tenth of a degree. The audible and visual temperature alarm sounds if the unit's interior goes out of range. Additional alarms include a power failure alert, door open alarm, and sensor failure alarm. This model is equipped with remote alarm contacts in the rear and a 1/2" probe port on the right side to accept additional monitoring devices. A hospital grade cord with 'green dot' plug is also included for added safety in high traffic areas.



Inside, the ARG31PVBIADA utilizes adjustable cycle defrost operation to avoid temperature spikes. Optimized forced air cooling with an internal fan to ensure excellent temperature stability and uniformity with rapid recovery after door openings. The adjustable plastic-coated wire shelves can be positioned at 1/2" increments to accommodate virtually any sized item. This unit includes LED internal lighting with an on/off rocker switch. The interior is constructed from white powder coated metal to ensure added durability and better temperature retention.



The ARG31PVBIADA comes in a white cabinet finish with a blue accented control panel. The factory-installed antimicrobial handle is powder-coated with naturally occurring silver ions, which help to reduce the spread of germs, allowing for a safer, cleaner user experience. The double pane tempered glass door provides a full view of the interior. The user-reversible door ships with a right hand swing and self-closing function (note: self-closing is disabled once reversed to LHD), while a factory-installed lock provides security as needed, with two keys for staff use. Powerful magnetic gaskets ensure a positive seal.



Designed with hydrocarbon refrigerant, the ARG31PVBIADA provides an energy efficient solution to vaccine storage. This unit is Pyxis, Omnicell, and AcuDose RX compatible. Additional sizes, as well as solid door options, are also available.



NOTE: refrigerators are purpose-built to the support meeting the current CDC (Centers for Disease Control) guidelines for the storage of vaccines. At this time, refrigerators have not been evaluated to the new NSF 456 standard. As referenced in the current Vaccine Storage and Handling Toolkit, these units incorporate microprocessor controls and forced air circulation for stable operation between 2 and 8ºC. For additional temperature assurance, the CDC recommends a calibrated digital data logger (DDL), which can be added with the factory-installed option DL2B or addition of the DL2BKit accessory.



Overview

Height of Cabinet

32.0" (81 cm)

Width

19.75" (50 cm)

Width with Door Open

20.25" (51 cm)

Depth

22.63" (57 cm)

Depth with Handle

24.38" (62 cm)

Depth with door at 90°

40.0" (102 cm)

Capacity

2.83 cu.ft. (80 L)

Defrost Type

Automatic

Door

Glass

Cabinet

White

US Electrical Safety

ETL

Canadian Electrical Safety

ETL-C

Amps

0.75

Voltage/Frequency

115 V AC/60 Hz

Weight

102.0 lbs. (46 kg)

Shipping Weight

150.0 lbs. (68 kg)

Parts & Labor Warranty

2 Years

Compressor Warranty

5 Years

UPC

761101075280

Refrigerator Features

Door Swing

RHD

Reversible

Yes

Shelf Type

Wire

Shelf Qty

4

Adjustable Shelves

Yes

Thermostat Type

Digital

Fan Type

Interior

Refrigerant Type

R600a

Refrigerant Amount

1.41oz.

High Side PSI

280.0

Low Side PSI

90.0

Interior Light

Yes

Temperature Range

2°C to 8ºC

Dimensions

Interior Height

24.0" (61 cm)

Interior Width

16.0" (41 cm)

Interior Depth

15.0" (38 cm)

Compressor Step Height

6.13" (16 cm)

Compressor Step Width

15.25" (39 cm)

Compressor Step Depth

5.5" (14 cm)
