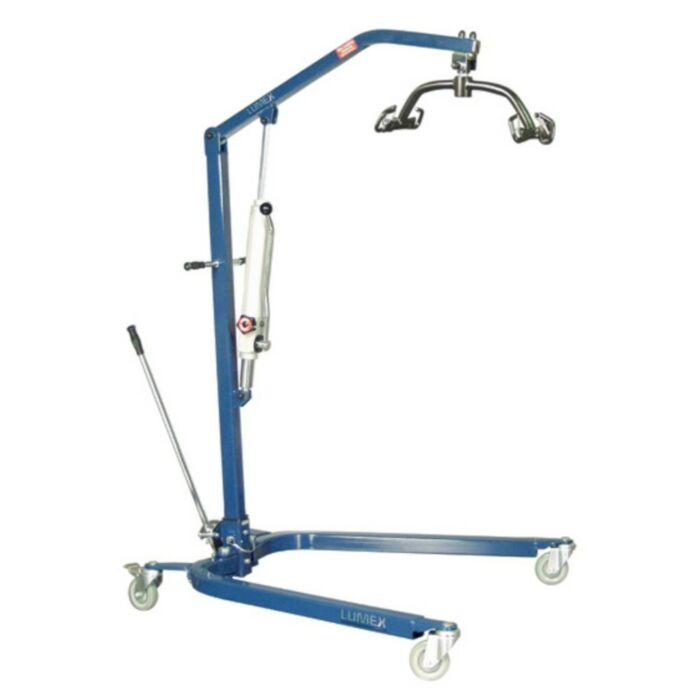

Patient Hydraulic Lift

Features

• Heavy gauge steel construction
• Six-point spreader bar with 360° rotation
• Uses six-point, four-point or two-point slings
• Foot pedal manually adjustable base
• Ergonomic placement of hydraulic pump handle facilitates ease of use
• Disassembles for easy storage
• Optional digital scale available
• Maximum weight capacity 400 lb - EVENLY DISTRIBUTED
• Designed to meet the requirements of HCPCS code:E0630
• One (1) year limited warranty

Specifications:

• Max weight capacity 400 lbs
• Floor clearance 5.5”
• Lifting range Min Height: 27.4”
• Max Height: 80.3”
• Overall length: 48”
• Overall height: 55”
• Overall width: 23.6”
• Max base width: 43”
• Unit Weight: 90 lbs

Fabric Full Body Sling Options

• Fully padded fabric that offers a soft yet supportive surface
• Offers full head and neck support
• For use with 4-point spreader option
• Designed to meet the requirements of HCPCS code: E0621
• F112 Medium, 42.75 X 50.75, 450 # Capacity
• F113 Large, 44.75" X 54.25", 450 # Capacity
• F117 X-Large, 44.75" X 60.25", 450 # Capacity

Mesh Full Body Sling Options

• Quick draining/drying mesh fabric offers full head and neck support
• For use with 4-point spreader option
• Designed to meet the requirements of HCPCS code: E0621
• FM110 Medium, 42.75" X 50.75", 450 # Capacity
• FM111 Large, 44.75" X 54.25", 450 # Capacity
• FM140 XX-Large, 42" X 51", 600 # Capacity

Universal Sling Options

• Provides excellent patient comfort and security
• Reinforced back for support
• Non-mesh slings have padding on legs and back
• Height-Adjustable straps
• Machine washable
• Six point connectivity is designed to enhance
  positioning and safety
• Designed to meet the requirements of
  HCPCS Code: E0621
• UP892 Fabric Medium, 40" X 25.6", 400 # Capacity
• UP893 Fabric Large, 43.5" X 23.8", 400 # Capacity
• UP894 Fabric XX-Large, 48.5" X 28.8", 600 # Capacity
• MS882 Mesh Medium, 40.5" X 25.8", 400 # Capacity
• MS883 Mesh Large, 44.5" X 24.75", 400 # Capacity
