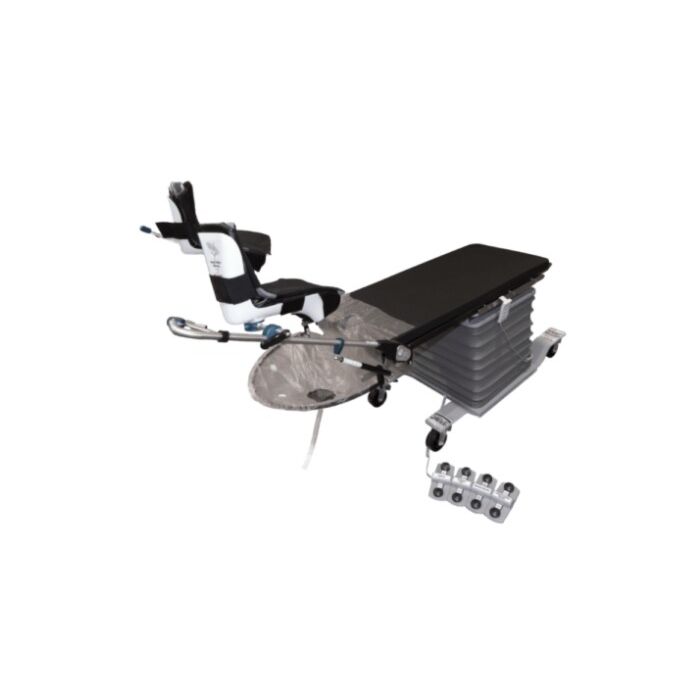

The URO-MAX Series Urology C-Arm Tables are purpose-built to support the unique demands of urologic imaging and interventional procedures. Designed with versatility within urology in mind, the URO-MAX allows facilities to configure one table to support a wide range of procedures while maintaining unobstructed C-arm access and reliable patient positioning.

At the core of the URO-MAX design is a cantilevered carbon fiber radiolucent tabletop, which provides full fluoroscopic visualization without interference from the base. The diving-board style top and short base design allow easy C-arm positioning from multiple angles—essential for lithotomy, stone management, and endoscopic procedures.

Customization is a key strength of the URO-MAX Series. Facilities can choose from five URO-MAX models, each offering different movement capabilities to match procedural needs. Side rail configurations can be selected with either full-length rails or split side rails, a popular choice for lithotomy positioning.

The table can also be configured with lightweight, removable extensions designed for urology workflows. The leg extension, rated up to 250 lbs, supports standard urologic positioning while remaining easy to install or remove—even with the fluid catcher in place.

Patient comfort and staff efficiency are built in. A 24″ wide tabletop eliminates the need for arm boards, while a 2″ thick high-quality comfort pad helps support patients during longer procedures. Protective bellows enclose internal components for safety and easy cleaning, and most standard OR accessories can be securely mounted to the side rails.

For urology departments that want a dedicated, configurable C-arm table—without unnecessary complexity—the URO-MAX Series offers a reliable, procedure-focused solution designed to support everyday urologic imaging.

URO-MAX Series Movements

The URO-MAX Series of imaging tables come in five different models, with all offering varying selections of motorized adjustments:

• UROMAX-1: Height adjustment but no other adjustments (28″ to 38″).
• UROMAX-2: both Height (28″ to 38″) and also Lateral Tilt adjustments (tilt of +/- 17° ).
• UROMAX-3: Height (28″ to 38″), and also Lateral Tilt (+/- 17° ), and Trendelenburg (+/- 13°) adjustments.
• UROMAX-4: Height (30″ to 40″) ,and also Lateral Tilt (+/- 17°), Trendelenburg (+/- 13°), and longitudinal travel (10″, +/- 5″) adjustments.
• UROMAX-5: Height (33.5″ to 43.5″), and also Lateral Tilt (+/- 17°), Trendelenburg (+/- 13°), longitudinal travel (10″, +/- 5″), and lateral travel (10″, +/- 5″) adjustments.
