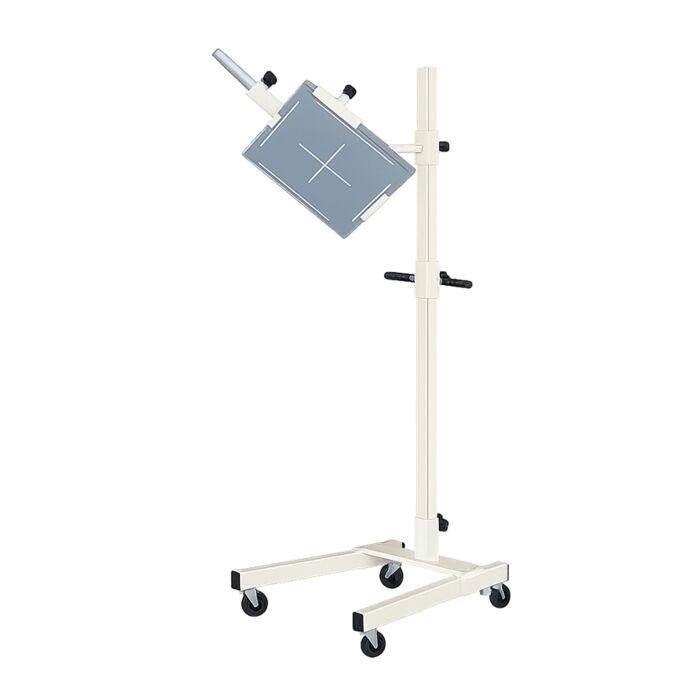

The V-Base Mobile DR / CR Panel and Cassette Holder is engineered to provide secure, precise positioning of digital radiography panels and CR cassettes in fast-paced clinical environments. Its vertically adjustable fixed arm allows the cassette tray to be positioned anywhere from 5¾″ to 50″ from the floor, accommodating a wide range of patient positions, exam types, and table heights.

The arm slides smoothly on the vertical pole and locks into 12 preset height positions using a spring-loaded plunger, allowing quick, repeatable adjustments. The cassette tray securely holds 14″ × 17″ DR panels, CR cassettes, and grids up to 1.25″ thick, with a load capacity of up to 20 lbs.

The V-shaped base design delivers an ideal balance of mobility and stability, making it well-suited for use alongside OR tables, imaging tables, and stretchers. Four swivel casters—each with an individual lock—allow easy maneuvering and secure placement during imaging.

This unit ships in two cartons for safer transport and easier handling during delivery and setup.

Key Features & Specifications

• Adjustable height range: 5¾″ – 50″ (floor to bottom of cassette tray)

• Holds 14″ × 17″ cassettes and DR panels up to 1.25″ thick

• Maximum load capacity: 20 lbs

• Fixed arm with tilt and rotate capability

• Arm slides vertically with 12 adjustment holes

• Spring-loaded plunger secures tray position

• V-base design for enhanced stability and maneuverability

• Four swivel casters with individual locks

• Ships in two cartons

Base Dimensions (Important for OR Compatibility)

• Base height: 6½″

• Front base length (pole to front): 29½″

• Front base width: 19″

• Back base length (pole to back): 29½″

• Back base width: 14½″
