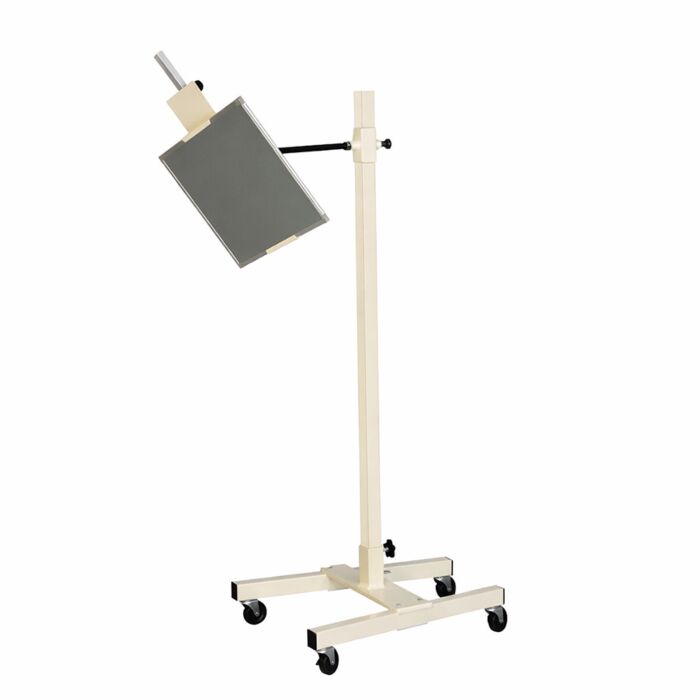

The V-Base Mobile CR Panel and Cassette Holder provides a reliable, adjustable platform for positioning computed radiography (CR) cassettes in demanding clinical environments. The vertically sliding fixed arm allows the cassette tray to be adjusted from 5¾″ to 50″ from the floor, making it suitable for a wide range of patient positions, imaging tables, and procedural setups.

The arm locks into 12 preset height positions along the vertical pole, using a spring-loaded plunger to ensure secure, repeatable placement. The cassette tray accepts 14″ × 17″ CR cassettes, as well as panels and grids up to 1.25″ thick, with a maximum load capacity of 20 lbs.

A V-shaped base design delivers excellent stability while still allowing easy maneuverability around OR tables, stretchers, and imaging equipment. Four swivel casters—each equipped with an individual lock—enable smooth transport and secure positioning during imaging.

This holder ships in two cartons for easier handling and safer transport.

Key Features & Specifications

• Adjustable height range: 5¾″ – 50″ (floor to bottom of cassette tray)

• Holds 14″ × 17″ CR cassettes

• Accepts cassettes, panels, and grids up to 1.25″ thick

• Maximum load capacity: 20 lbs

• Fixed arm with tilt and rotate capability

• Vertical arm with 12 height adjustment holes

• Spring-loaded plunger secures tray position

• V-base design for mobility and stability

• Four swivel casters with individual locks

• Ships in two cartons

Base Dimensions (Important for OR Compatibility)

• • Base height: 6½″

  • Front base length (pole to front): 29½″

  • Front base width: 19″

  • Back base length (pole to back): 29½″

  • Back base width: 14½″
