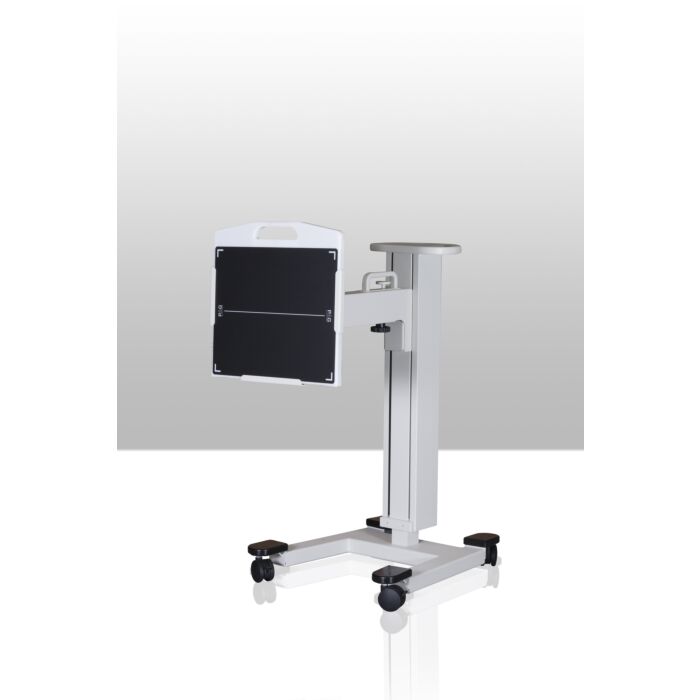

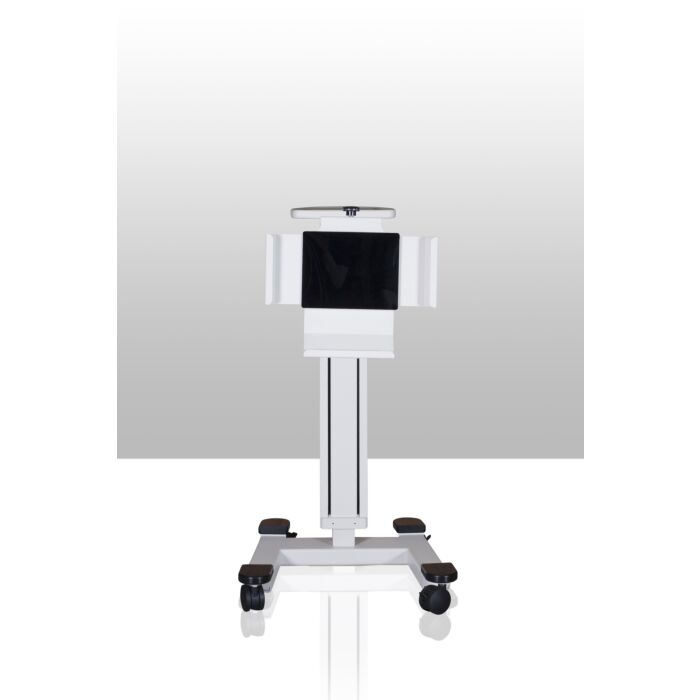

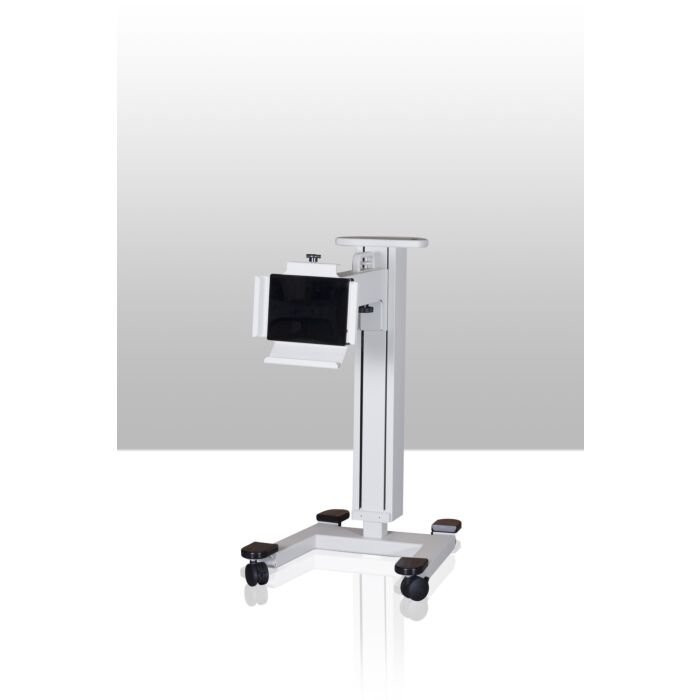

Mobile DR Panel Positioning Partner

The Mobile DR Panel Positioning Partner provides stability, versatility and reliability when positioning DR panels for portable radiography. Perpendicularity is crucial during cross-table exams and expensive panels are heavier than their imaging receptor predecessors - the Positioning Partner allows the tech to positioning effectively while achieving optimal images for a variety of radiographs. With its small footprint and counterbalanced base, the mobile DR panel holder is easy to drape for surgery and will not tip. It can be used in surgery, imaging centers, clinics and exam rooms.

Product Advantages

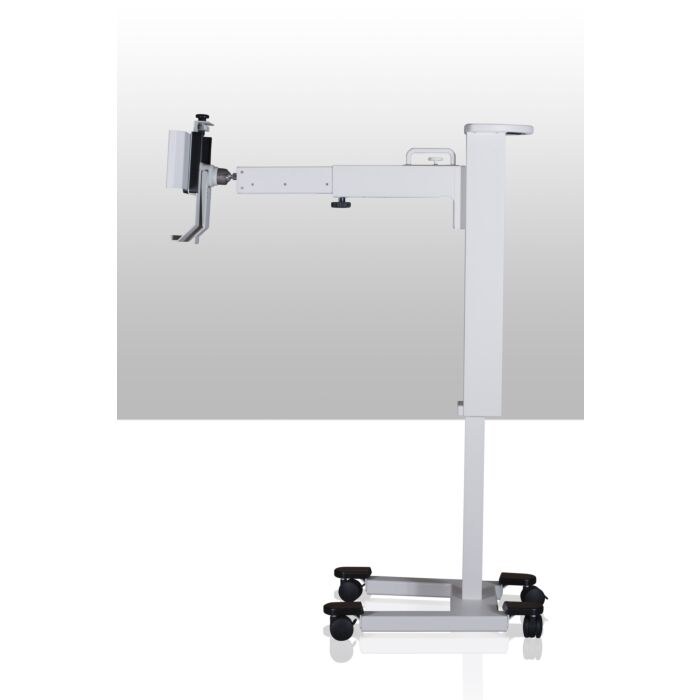

• Telescoping arm

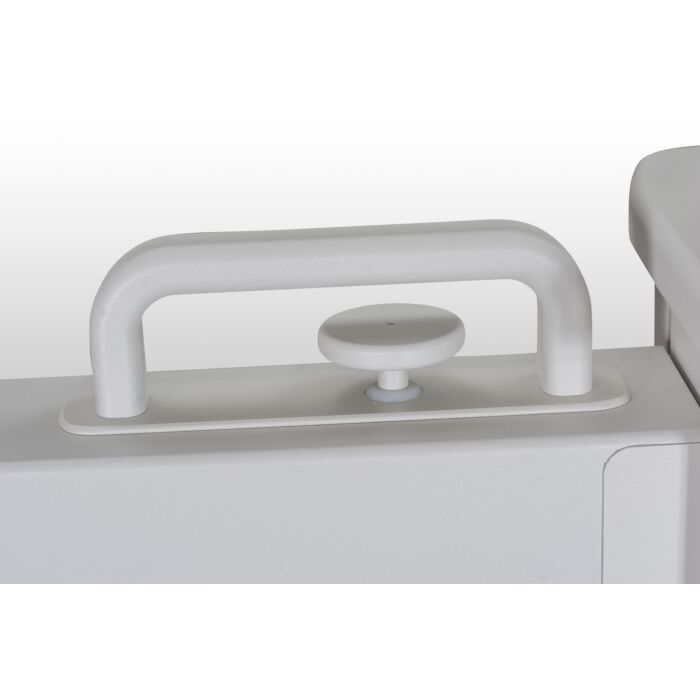

• Adjustable head

• (43x43cm and smaller)

• Piston driven vertical travel

• Small footprint

• Easy to drape

• No electric

• Locking casters

• Counterbalanced

Model POSP14
Weight (approx.) 86 lbs (39kg)
Size 30”x23.25”x40” (76.2cm x59cm x101.6cm)
Vertical Travel (height adjustment) 64” (162.56cm)
Horizontal Arm Vertical Travel Max height from origin: 39” Min height from origin: 4”
Telescope Travel (Horizontal arm travel) Max distance from origin: 29” Min distance from origin: 17” Travel: 12”
Boxed Dimension 49” x 48” x 36” (124.5cm x 122cm x 91.5cm)
Shipping Weight 190 lbs. (86.2 kg)
