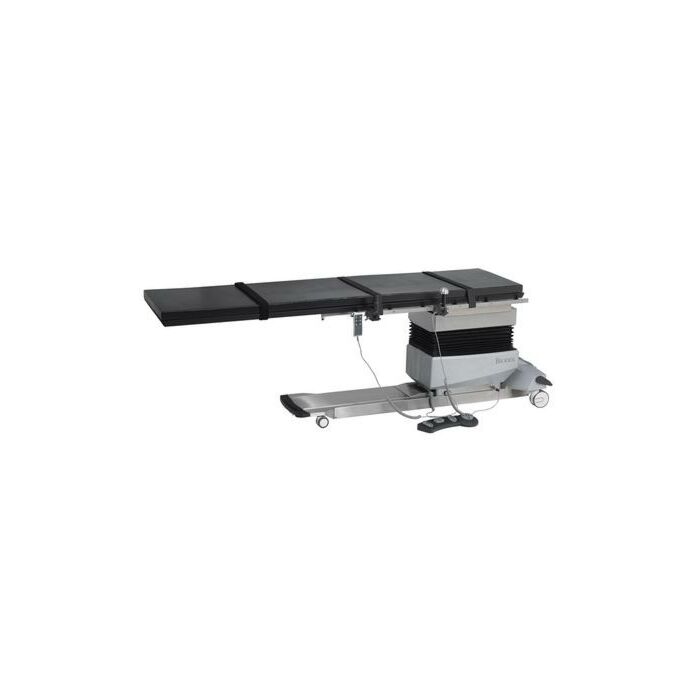

Biodex Surgical C-Arm Table

$50,500.00
10 Week Lead Time
SKU
058-840

The Surgical C-Arm Table 840 is designed for image-guided fluoroscopic procedures where stability, access, and precise, quiet, vibration-free positioning are essential. A cantilevered low attenuation carbon fiber tabletop,with choice of contoured or rectangular design, accommodates portable or ceiling-suspended C-Arms. The contoured top provides ample workspace for anesthesiologists, yet the narrowness required for cervical procedures. The rectangular top offers additional space to allow for superior image quality for long-leg runoff studies. Choose the top that best suits your needs to achieve optimum image resolution.

The extra-large radiolucent area, free-float X-Y tabletop, motorized control of height, lateral roll, Trendelenburg motions and the catheter tray extension make the Surgical C-Arm Table - 840 ideal for cardiovascular procedures. The radiolucent area is free of cross members, allowing full fluoroscopic visualization and unobstructed C-Arm positioning. Functional design provides complete access with reduced radiation exposure to clinicians. Patient comfort and stability are assured by two-inch thick table padding and three adjustable straps with hook and loop fastening. The contoured tabletop features a face cutout for prone positioning.

Control Made Easy
The portable hand-held and foot operated controllers ensure quick and safe tabletop positioning, and can be positioned from any point around the table.  Both controllers offer the freedom to adjust height, lateral roll and Trendelenburg motions. The hand-held controller provides the back to level function.The foot-operated controller also releases the tabletop for X-Y positioning and is ideal when hands are busy with other functions.

Free-float Feature
A push-button release for the free-float feature is located at the end of a handgrip. When employing any degree of tilt or roll, X and Y positions are "locked" to prevent gravity-induced X or Y motion. Selective "lockout" of X or Y movement is also provided: head-to-toe (X) float can be maintained during lateral roll; side-to-side (Y) float can be maintained during Trendelenburg positioning.

Both AC and battery power are standard. When operating on battery, there are no power cords to catch on feet or block table wheels. Battery charging can be accomplished during off hours by plugging in the AC power cord. An optional battery with separate charging unit can provide continuous cordless operation.

As required by law, all Biodex C-Arm tables are CDRH registered and FDA Device Listed. All motorized tables are ETL product listed to the UL-60601-1 Medical Electrical Equipment Safety Standard.

500 lb. Patient Weight Capacity

The Surgical C-Arm Table 840 is designed for image-guided fluoroscopic procedures where stability, access, and precise, quiet, vibration-free positioning are essential. A cantilevered low attenuation carbon fiber tabletop,with choice of contoured or rectangular design, accommodates portable or ceiling-suspended C-Arms. The contoured top provides ample workspace for anesthesiologists, yet the narrowness required for cervical procedures. The rectangular top offers additional space to allow for superior image quality for long-leg runoff studies. Choose the top that best suits your needs to achieve optimum image resolution.

The extra-large radiolucent area, free-float X-Y tabletop, motorized control of height, lateral roll, Trendelenburg motions and the catheter tray extension make the Surgical C-Arm Table - 840 ideal for cardiovascular procedures. The radiolucent area is free of cross members, allowing full fluoroscopic visualization and unobstructed C-Arm positioning. Functional design provides complete access with reduced radiation exposure to clinicians. Patient comfort and stability are assured by two-inch thick table padding and three adjustable straps with hook and loop fastening. The contoured tabletop features a face cutout for prone positioning.

Control Made Easy
The portable hand-held and foot operated controllers ensure quick and safe tabletop positioning, and can be positioned from any point around the table.  Both controllers offer the freedom to adjust height, lateral roll and Trendelenburg motions. The hand-held controller provides the back to level function.The foot-operated controller also releases the tabletop for X-Y positioning and is ideal when hands are busy with other functions.

Free-float Feature
A push-button release for the free-float feature is located at the end of a handgrip. When employing any degree of tilt or roll, X and Y positions are "locked" to prevent gravity-induced X or Y motion. Selective "lockout" of X or Y movement is also provided: head-to-toe (X) float can be maintained during lateral roll; side-to-side (Y) float can be maintained during Trendelenburg positioning.

Both AC and battery power are standard. When operating on battery, there are no power cords to catch on feet or block table wheels. Battery charging can be accomplished during off hours by plugging in the AC power cord. An optional battery with separate charging unit can provide continuous cordless operation.

As required by law, all Biodex C-Arm tables are CDRH registered and FDA Device Listed. All motorized tables are ETL product listed to the UL-60601-1 Medical Electrical Equipment Safety Standard.

500 lb. Patient Weight Capacity

More Information
SKU 058-840
Shipping Method Freight
Warranty 2 year
Condition New
Special Price $50,500.00
International Shipping No
