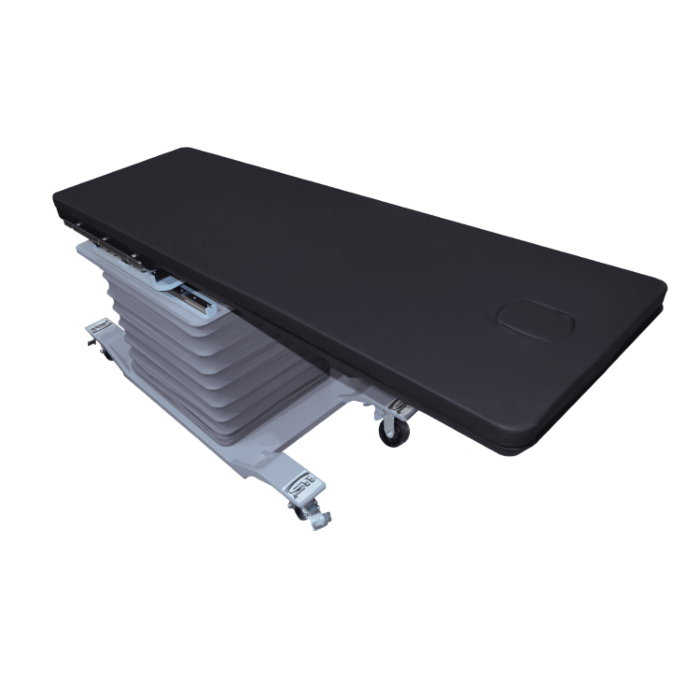

The BT Series Bariatric C-Arm Tables are purpose-built for facilities that perform bariatric, pain management, GI, and spine procedures and require a table capable of safely supporting significantly higher patient weights. With a 1,000 lb weight capacity, the BT Series stands apart as the only diving-board style mobile C-arm table on the market designed to handle this load. At the core of the BT Series is a carbon fiber radiolucent tabletop paired with a short, H-style square base, providing unobstructed C-arm access from multiple angles. This design ensures full fluoroscopic visualization while maintaining exceptional stability—regardless of patient positioning. The 27″ wide tabletop eliminates the need for arm boards, simplifying setup and improving patient comfort.

Built for real-world clinical use, the BT Series features a high-end actuator motor engineered to support bariatric loads without sacrificing smooth, controlled movement. An 84″ tabletop length accommodates taller patients, while the 2″ thick high-quality comfort pad and facial cut-out support prone positioning during longer procedures. Despite its heavy-duty capacity, the BT Series remains fully mobile, allowing the table to be moved within or between procedure rooms as needed. High-quality wheel locks ensure secure positioning once in place, supporting both patient safety and procedural confidence. For facilities that need a true bariatric imaging solution—not a standard table pushed beyond its limits—the BT Series delivers strength, access, and reliability designed specifically for high-capacity imaging environments. Note that all BT Series imaging tables with motorized movements require 120 VAC power for operation.

The Bariatric Series of imaging tables come in three different models, each offering different motorized adjustments:

• BT-3 offers Height (29″ to 37″) and also Lateral Tilt (+/- 17° ), and Trendelenburg (+/- 12°) adjustments.
• BT-4 offers Height (31″ to 39″) and also Lateral Tilt (+/- 17°), Trendelenburg (+/- 12°), and longitudinal travel (16″, +/- 8″) adjustments.
• BT-5 offers Height (35″ to 43″) and also Lateral Tilt (+/- 17°), Trendelenburg (+/- 12°), longitudinal travel (16″, +/- 8″), and lateral travel (10″, +/- 5″) adjustments.

Top Questions About Bariatric Surgery Tables Answered Below:

Why is the diving board-style, cantilever design important?
A: It allows the C-arm to get close from multiple angles without significant obstructions. That improves imaging quality, lowers dose, and enhances workflow efficiency.

Q: Does handling up to 1,000 lbs compromise patient safety or table stability?
A: Our tables are engineered with reinforced materials and locking mechanisms. The stability doesn’t suffer — in fact, the added strength ensures that even at max capacity the table remains firm and secure. Built-in safety locks and wheel-secure systems are standard.

Q: What about patient comfort?
A: We use a 2-inch padding, high quality, to reduce pressure points. The table width also helps distribute weight more evenly.

Q: Is this a cost-effective solution?
A: Yes. Because the BT table is designed for versatility across specialties (not just bariatrics), it can serve in GI, urology, vascular, spine cases as well — which maximizes utility. And reducing the need for extra accessories (like arm boards) helps with cost savings.

• BT-3 – Height (29″ to 37″), and also Lateral Tilt (+/- 17°), Trendelenburg (+/- 12°),
