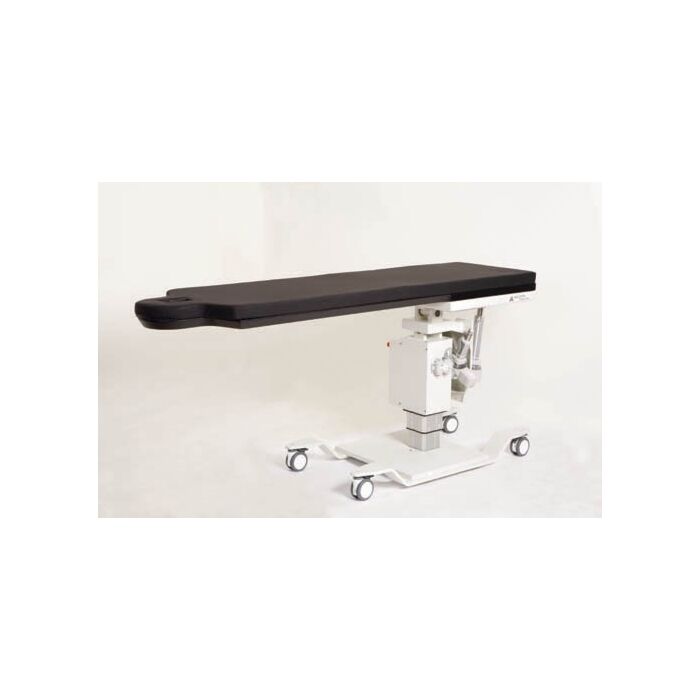

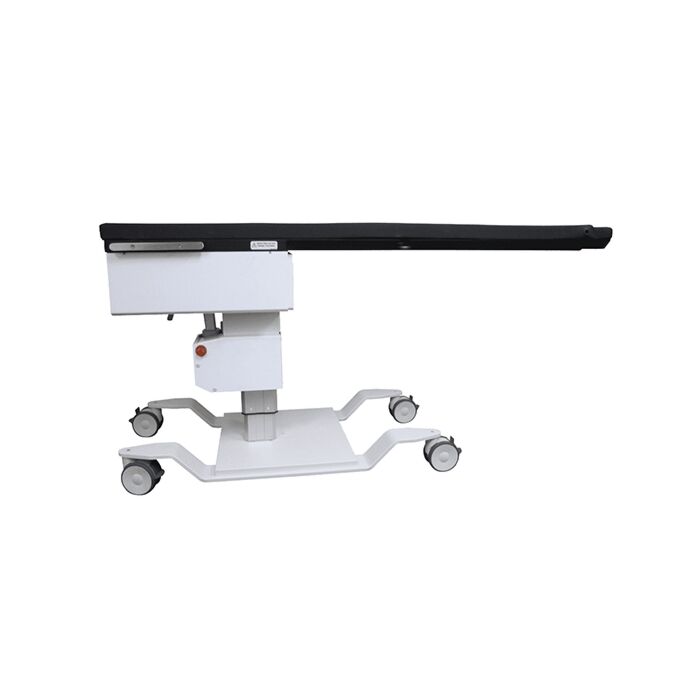

The STILLE Medstone TM3 (Model 500-1006) is a hospital-grade 3-way imaging table engineered for fluoroscopy-guided pain management, vascular, and interventional procedures where precise patient positioning and imaging access are critical.

Featuring motorized Trendelenburg tilt (+15° / −15°), motorized lateral tilt (±15°), and motorized height adjustment from 27” to 39”, the TM3 gives clinicians full control over patient orientation for optimal imaging angles and procedural access.

The carbon fiber tabletop measures 22” wide x 82” long and includes a narrow head profile with facial access cutout and chamfered edges, improving patient comfort while maintaining outstanding C-arm visibility. A 58” unobstructed, metal-free imaging zone ensures clear fluoroscopic and digital imaging without interference.

Despite its robust build, the TM3 remains easy to maneuver, weighing approximately 540 lbs and rolling smoothly on four hospital-grade locking casters. The heavy-duty steel base frame provides exceptional stability, even with large patients up to 500 lbs.

A radiolucent pad, wired hand control, and three patient safety straps are included as standard, making the TM3 ready for high-volume procedural use right out of the box. Powered by standard 110 VAC, it integrates seamlessly into existing procedure rooms without special electrical requirements.

Key Benefits

• Full 3-way motorized motion
• Trendelenburg tilt +15° / −15°
• Lateral tilt ±15°
• Motorized height range 27”–39”
• 500-lb patient capacity
• Carbon fiber radiolucent tabletop
• 58” metal-free imaging zone
• Narrow head profile with facial access cutout
• Heavy-duty steel base for stability
• Mobile with locking casters
• Includes safety straps and radiolucent pad
• 3-year parts and labor warranty

Specifications

• Model: STILLE Medstone TM3 (500-1006)
• Table Type: 3-Way Imaging Table
• Trendelenburg: +15° / −15° motorized
• Lateral Tilt: ±15° motorized
• Height Range: 27" – 39" motorized
• Tabletop: Carbon fiber
• Tabletop Size: 22" W x 82" L
• Imaging Length: 58" metal-free
• Patient Capacity: 500 lbs
• Table Weight: Approx. 540 lbs
• Casters: Four hospital-grade locking
• Mattress: Radiolucent pad
• Controls: Wired hand control
• Safety: Three patient safety straps
• Power: 110 VAC, 60 Hz
• Warranty: 3 years parts & labor
