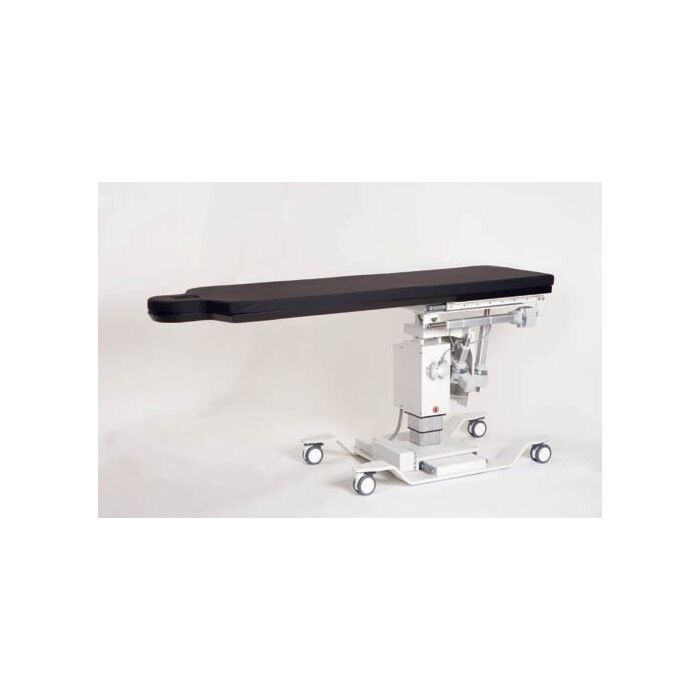

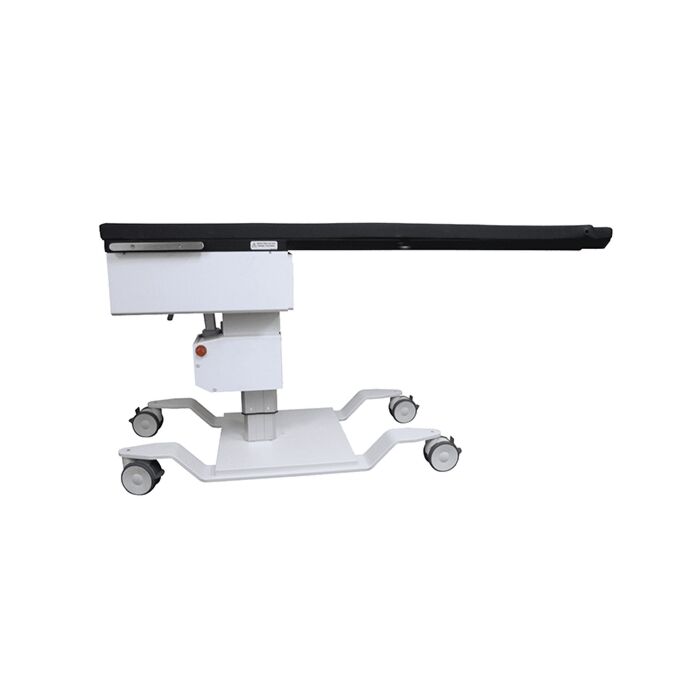

Medstone Elite TM4 Transportable Pain Management and Vascular Table - 4 way

The STILLE Medstone Elite TM4 (Model 500-1004) is the most advanced imaging table in the Medstone pain management and vascular series, engineered for high-precision fluoroscopy-guided procedures where speed, positioning accuracy, and imaging access are critical.

This 4-way motorized table provides longitudinal head-to-foot travel of 16 inches, Trendelenburg tilt (+15° / −15°), lateral tilt (±15°), and motorized height adjustment from 30.5” to 42”, giving clinicians complete control over patient positioning without moving the C-arm or disrupting sterile workflow.

The carbon fiber tabletop measures 22” wide x 82” long and includes a narrow head profile with facial access cutout and chamfered edges to maximize imaging clearance and patient comfort. A 58” unobstructed metal-free imaging zone ensures excellent fluoroscopic and digital visibility for spine, vascular, and interventional procedures.

Despite its robust 4-axis capability, the TM4 remains mobile and easy to maneuver, weighing approximately 625 lbs and rolling smoothly on hospital-grade locking casters. The heavy-duty steel base provides rock-solid stability for patients up to 500 lbs.

The table comes standard with a radiolucent pad, wired hand control, and three patient safety straps, making it fully procedure-ready out of the box. Backed by a 3-year parts and labor warranty, the TM4 delivers long-term reliability for high-volume procedural environments.

Key Benefits

• 4-way fully motorized positioning
• 16” longitudinal head-to-foot travel

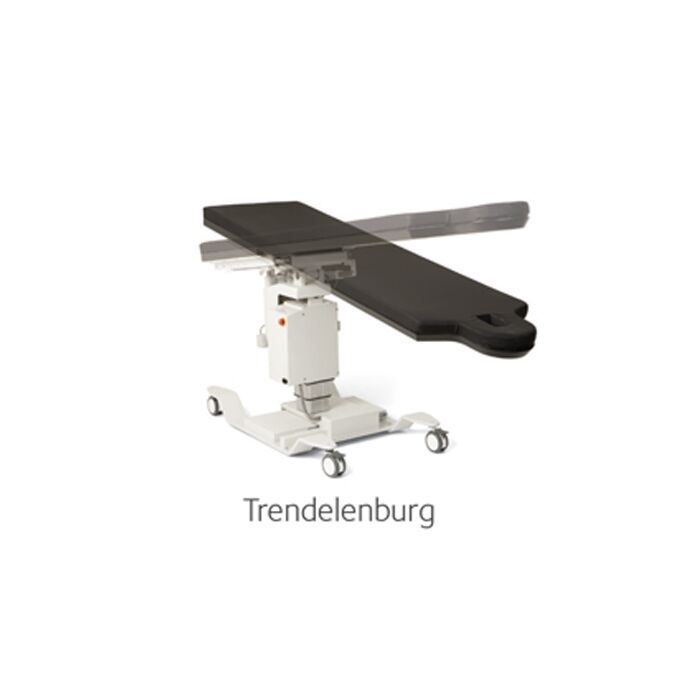

• Trendelenburg tilt +15° / −15°

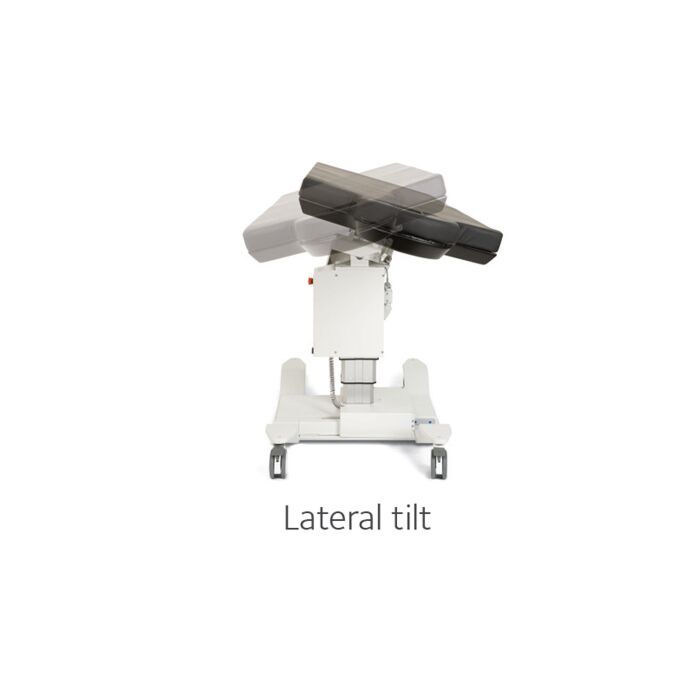

• Lateral tilt ±15°

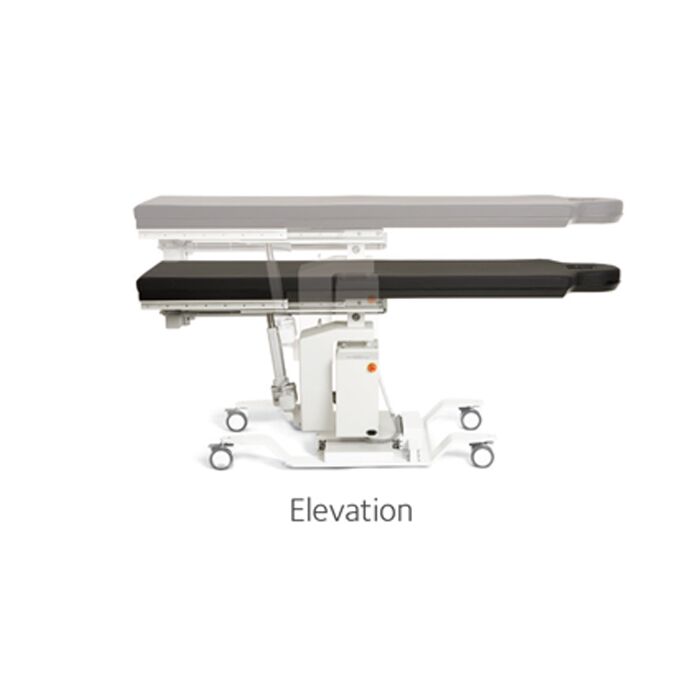

• Motorized height range 30.5”–42”
• 500-lb patient capacity
• Carbon fiber radiolucent tabletop
• 58” metal-free imaging zone
• Narrow head profile with facial access cutout
• Mobile with hospital-grade locking casters
• Includes safety straps and radiolucent pad
• 3-year parts and labor warranty

Specifications

• Model: STILLE Medstone Elite TM4 (500-1004)
• Table Type: 4-Way Imaging Table
• Longitudinal Travel: 16” motorized
• Trendelenburg: +15° / −15° motorized
• Lateral Tilt: ±15° motorized
• Height Range: 30.5” – 42” motorized
• Tabletop: Carbon fiber
• Tabletop Size: 22” W x 82” L
• Imaging Length: 58” metal-free
• Patient Capacity: 500 lbs
• Table Weight: Approx. 625 lbs
• Controls: Wired hand control
• Mattress: Radiolucent pad
• Safety: Three patient restraints
• Warranty: 3 years parts & labor
