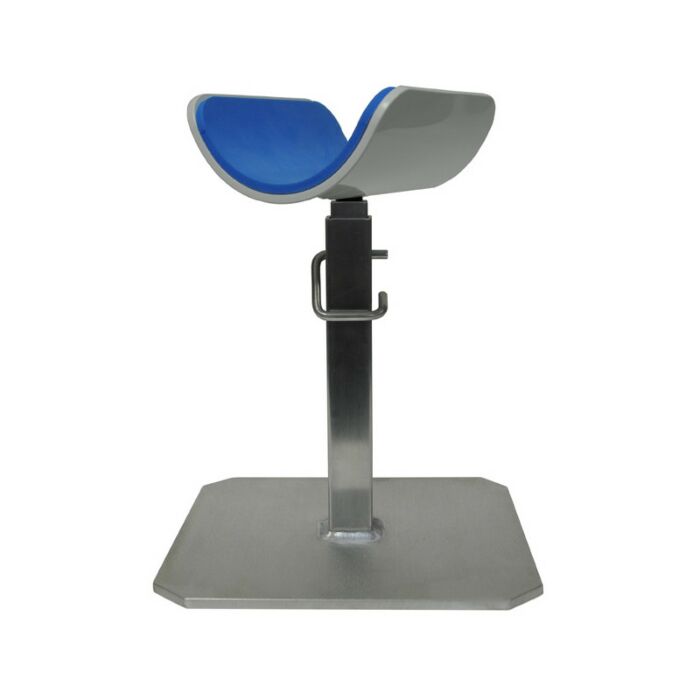

Leg Positioning Stand

• Soft Foam Cushioned Cradle
• 360° Swivel Action
• Height Adjustable
• Simple and Easy to Use
• 6 lbs.

This leg stand will support one leg in a cushioned cradle. The cradle swivels to allow for a comfortable position. The cradle height can be adjusted in 1" increments. The telescoping cradle post has 7 holes at 1" spacing to accommodate the locking rod. The Leg Positioning Stand is designed to work with both Radiation Therapy and Diagnostic Radiology, and because of its simplicity, it is able to be incorporated into many other areas, where leg positioning is necessary.

The 10" square aluminum base has the cradle post welded to it and also includes rubber pads to minimize movement.

Specifications:

Cradle

• Width: 5.1" (13cm)
• Length: 6.8" (17.5cm)
• Pad: 1/4" Blue Foam
• Base: 1/4" White PVC

Base

• Base Size: 10" x 10" x 1/4" Thick
• Cradle Post Height: 9" (22.8 cm)
• Minimum Height from Couch Top: 7.1" (18.1 cm)
• Maximum Height from Couch Top: 16.6" (42.3 cm)
• Base Material: Aluminum
