OrthoMark® - OM-1011 Clamp Surgical Planning Marker

OrthoMark was designed over 20 years ago to help measure x-ray magnification in digital images and they’ve been doing the job since. OrthoMark is compatible with all medical, orthopedic and veterinary templating software available, and there is a solution for every x-ray room.

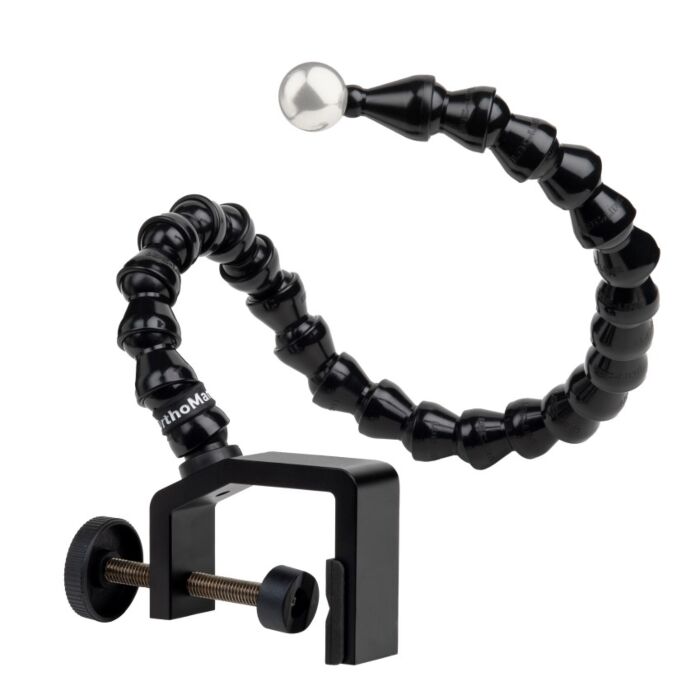

The large clamp base Model OM-1011 is designed for use on any clampable surface, flat or round, up to 2 3/8” thick. It works especially well when attached to patient grab handles, or step stool and elevated stair handles. When using, simply position and tighten. When attaching to a round surface, position the V notch on the fixed side of the clamp where you intend to clamp, use the speed tightening nut for coarse adjustment then the large wheel for additional clamping force. This is a strong clamp, so don’t overtighten.

Position the sphere normally after positioning patient. By positioning OrthoMark's solid, 1 inch (25.4mm) stainless steel calibration ball at the precise anatomical plane of the shoulder, hip, knee—or any anatomy for that matter—during x-ray imaging, surgical planning software is able automatically find the x-ray marker in the image, calculate the x-ray magnification factor, and determine the true size of the anatomy in question. This helps to ensure that the appropriate prosthetic is selected before surgery.

The OM-1011 can be used with all orthopedic and veterinary surgical templating software.

Specifications

• Arm length: 24″
• Arm Weight – 7.5 oz
• Total Weight: 13 oz
• Ball Type - Stainless 316
• Ball: 25.4mm/1″ Stainless
• Base Type – 2.375” Jaws Clamp

OrthoMark® is available with a variety of bases and attachment methods and comes with a 25" arm which can be easily extended at any time. All parts are US supplied and readily available. The stainless-steel calibration ball is solid and doesn't degrade when surrounded by larger body mass.
