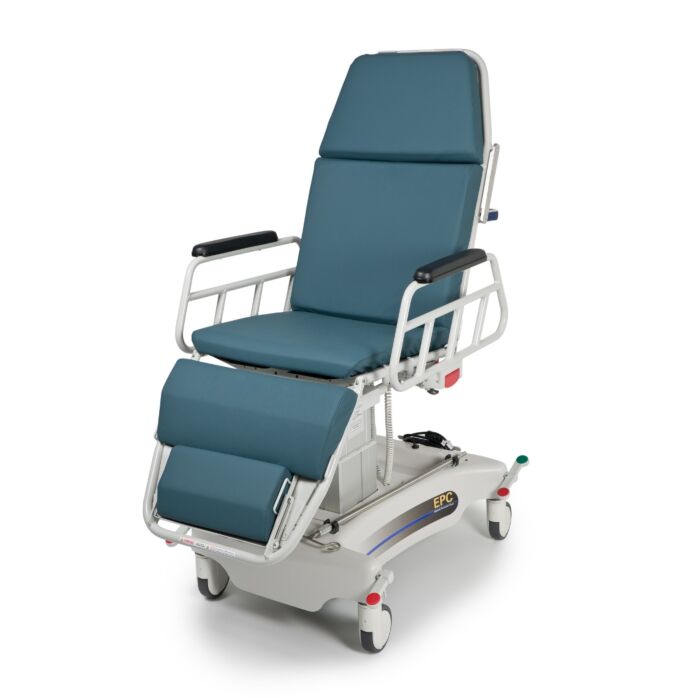

All Purpose Electric Powered Chair

Versatile, easy to use, and time-efficient. Treat, transfer, and transport patients on a comfortable chair configuration. Provides positioning capabilities for a variety of procedures and all phases of treatment. Pre-induction, transport, treatment, and recovery can be performed on the same unit to improve case turnaround and streamline patient handling. Reduces staff time and prevents staff injury involved in transferring patient during various phases of care. A full range of patient positioning provides patient comfort during every phase of care including transport, clinical procedures, and recovery. Improves the quality of care and reduces the risk of patient injury by eliminating multiple patient transfers. Patients can position themselves with handheld controls, which minimizes staff involvement and can help speed recovery time. Ideal for Emergency/Triage and same day services, Surgery Center – General, Orthopedic, etc., Mammography, Ultrasound, Physician’s Office, Dialysis Clinic, and GI Labs.

Features

• Motorized Controls for Height Adjustment: 22.50 inches (57 cm) to 32.50 inches (83 cm), Back Rest: 0°- 80°, Leg Section, Trendelenburg: 0°- 6°
• Handheld pendant for height, backrest and independent leg section adjustments
• Patient/Staff hand-held control
• Emergency backrest release lever to override power backrest
• 24 VDC battery back-up
• Functions when not plugged into an outlet
• Four-wheel brake and steer system operable from both sides of unit
• 5 inch easy rolling casters
• Fold-down footrest (height adjustable)
• Accessory wells (2 on each side)
• Built-In chart holder and push bar
• Swing – tuck under rails with padded armrests maintain patient security
• Patient surface: 22 inches (56 cm) x 70.50 inches (179 cm)
• Weight capacity – evenly distributed: 500 lb (227 kg)

Optional Accessories

• IV pole, 42 inches (107cm) fixed height, removable – H000E1700
• Telescoping IV pole 27 inches (68 cm) – 54 inches (137 cm) – H000018
• Electric foot control (Post 2012) – HSA07550A
• Heel stirrups with mounting adapters – HAPC02600
• O2 tank holder – HEC0001
