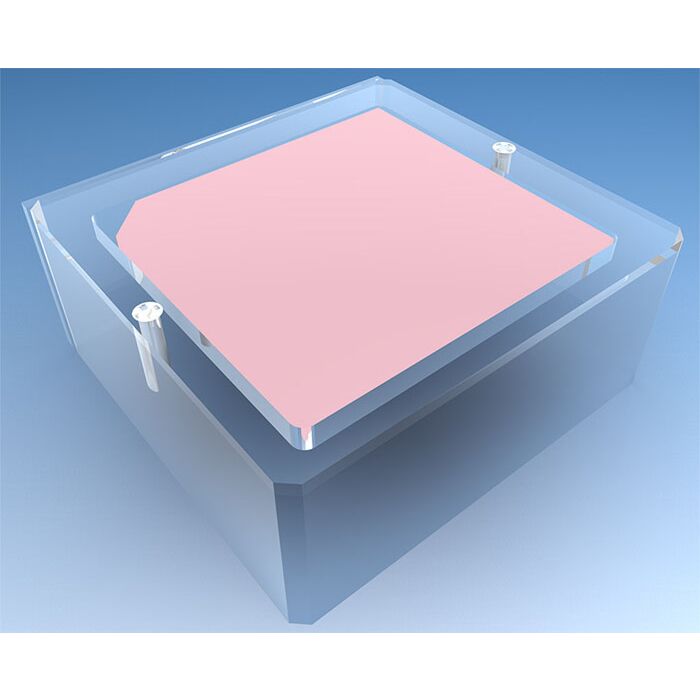

Mammographic Accreditation Phantom

Phantom can test the performance of a mammographic system and its ability to image small structures similar to those found clinically: calcifications, fibrous calcifications in ducts and tumor masses.

• dimensions: 102.0 x 108.0 x 44.0 mm
• simulates 42 mm compressed breast of average glandular/adipose composition
• total PMMA thickness: 36.75 mm
• wax insert:
  • thickness: 7.25 mm
  • nylon fibrils diameters: 1.56, 1.12, 0.89, 0.75, 0.54 and 0.40 mm
  • microcalcifications: 0.54, 0.40, 0.32, 0.24 and 0.16 mm Al2O3 specks
  • tumor-like masses: 2.00, l.00, 0.75, 0.50 and 0.25 mm thick
• 4mm thick PMMA contrast disc
• rotating support plate (optional)
• comfortable carrying case (optional)

Product features:

• complies with:
  • IEC 61223-3-2
  • Complies with ACR manufacturing specification
  • Approved by ACR for Accreditation in USA
• CE certified
• the Manual provides detailed guidelines for carrying out each test, results assessment and registration
