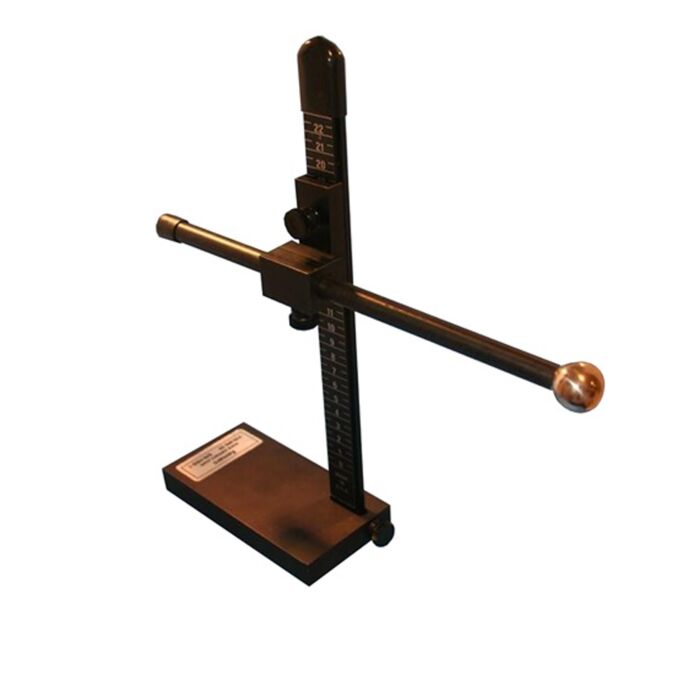

T-Lock Stand Calibration Marker

The T-Lock Stand was designed specifically to allow the calibration marker to be set at the height of the greater trochanter, and yet still appear within the narrow field of the radiograph. By first adjusting the MCM horizontal arm to the desired height outside of the field, and then locking it in place, the entire stand can be moved to the inner thigh area where the radiograph can be taken with confidence. The marker height locks in place and will not move if bumped or jarred.

Features

• Will not move if bumped or jarred.
• Marker height locks in place.
• Lightweight and with a small footprint.
• One hand (thumbscrew) operation of the height of the horizontal arm.
• 25cm scale allows you to record the MCM height from the tabletop.
• Base: 3 x 6 inch ( 7.5 x 15cm). Anodized aluminum.
• Arm length: 12 inches (30cm) Stand Weight: 2.5 lbs
• Vertical Height: 14 inches (38 cm)
• Marker Height from bottom of base: 3 cm min, 25 cm max
• Marker Size: 1 inch / 25.4 mm
• Marker Material: Radiopaque 300 series surgical stainless steel
