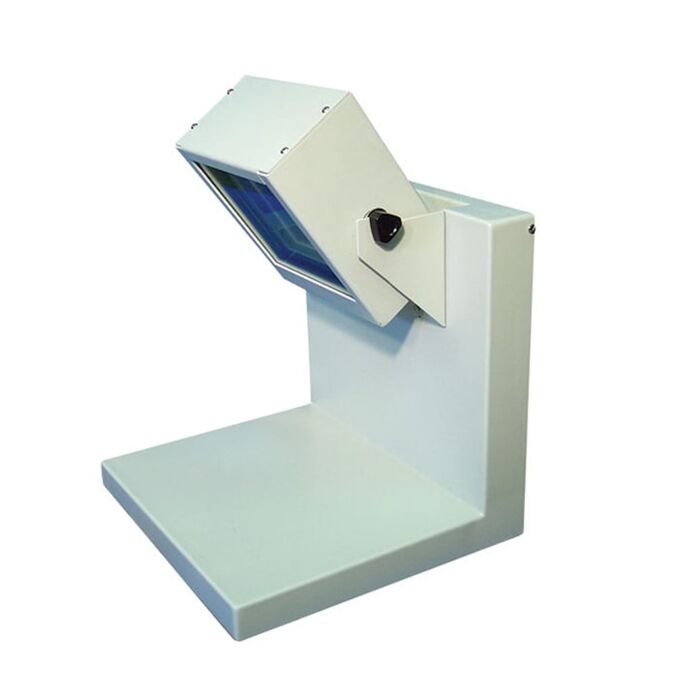

511 Adjustable Viewing L Block Table Top Shield

The 511 Adjustable L-Block Table Top Shield is engineered to exceed basic radiation safety standards, delivering exceptional protection for professionals handling 511 keV nuclides. Designed with functionality and operator comfort in mind, the adjustable lead glass window allows users to set their preferred viewing angle (30°–55°), enhancing workflow efficiency and reducing fatigue during extended use. The Adjustable L-Block can be used as a stand-alone shield or combined with optional side and back Brick Kits for complete workstation protection — an ideal setup for PET laboratories and radiopharmacies.

The front wall of the shield includes 2 3/8" (6 cm) of solid lead protection, while the 4" thick lead glass window provides superior shielding with excellent optical clarity. A clear glass protective cover safeguards the lead glass from chips and scratches, preserving visibility and extending the life of the shield. Crafted from high-gauge steel, the front, base, and glass frame ensure lasting durability and superior structural stability. The unit ships in three easy-to-assemble sections, making setup quick and convenient. The Adjustable L-Block can be used as a stand-alone shield or combined with optional side and back Brick Kits for complete workstation protection — an ideal setup for PET laboratories and radiopharmacies.

Features:

• Adjustable lead glass window tilts from 30° to 55° for customized visibility
• 2 3/8" (6 cm) lead shielding in front wall for maximum radiation protection
• 4" thick lead glass (5.2 density, 1.6" lead equivalence) with clear glass cover to prevent damage
• High-gauge steel construction for superior strength and stability
• Ships in three easy-to-assemble pieces for quick setup
• Optional Brick Kits available for side and rear wall protection

Specifications:

• Dimensions: 21" H × 15.75" W × 15.5" D (53.3 × 39 × 39.3 cm)
• Lead Shielding: 2 3/8" (6 cm)
• Lead Glass: 8" × 8" × 4" (20.32 × 20.32 × 10.16 cm)
• Lead Glass Density: 5.2 g/cc
• Lead Glass Equivalence: 1.6"
• Weight: 500 lbs
