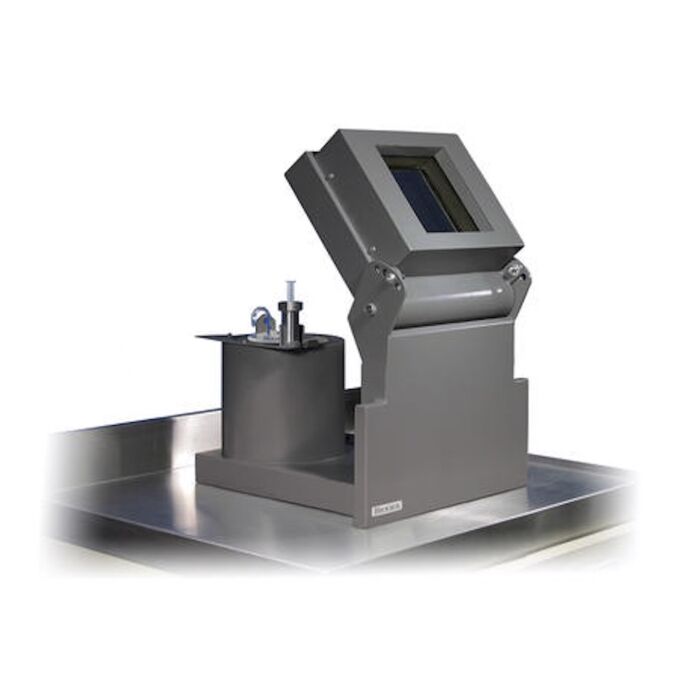

Compact L-Block Shield 1.5” lead, with Built in Dose Calibrator Shield

Designed to maximize space in facilities receiving and preparing doses of high-energy nuclides such as FDG F-18. The unique Compact L-Block with Dose Calibrator Shield is designed to maximize space in facilities receiving and preparing doses of high-energy nuclides such as FDG F-18. It provides convenient access and viewing of the work area and incorporates a built-in calibration chamber shield. The special shield accommodates a chamber that is through-mounted in a countertop (customer responsible for installation) and all Atomlab chambers and many others (see chamber shield specifications to determine fit). This combination of L-Block and dose calibrator shield eliminates the need to purchase interlocking shielding rings. It is constructed of lead encased in steel and features a large 8" x 8" x 4" lead glass window with adjustable window angle, 1.5" thickness lead shielding in front, and 1" thick lead in the base and in the chamber shield. A special plate with a hex-shaped recess is mounted on the L-Block base to facilitate one-handed loading and unloading of dose pigs incorporating hex-shaped bottoms. The optional 042-434 Lead Brick Cave fits into the sides of the vertical section to provide lateral shielding around the full perimeter of the base. For hot labs in mobile vans, the optional Brick Cave Cover will prevent the cave from shifting when the vehicle is in motion.

Features

• 1.5″ thick lead shielding in front, 1″ in base
• 8″ x 8″ x 4″ adjustable lead glass window
• 1″ thick lead shield surrounds calibration chamber
• Optional Lead Brick Cave for complete lateral shielding
