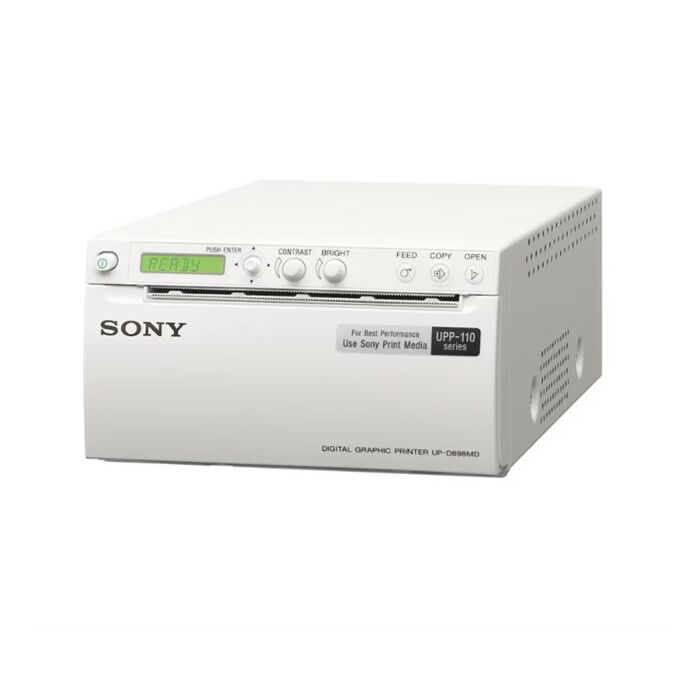

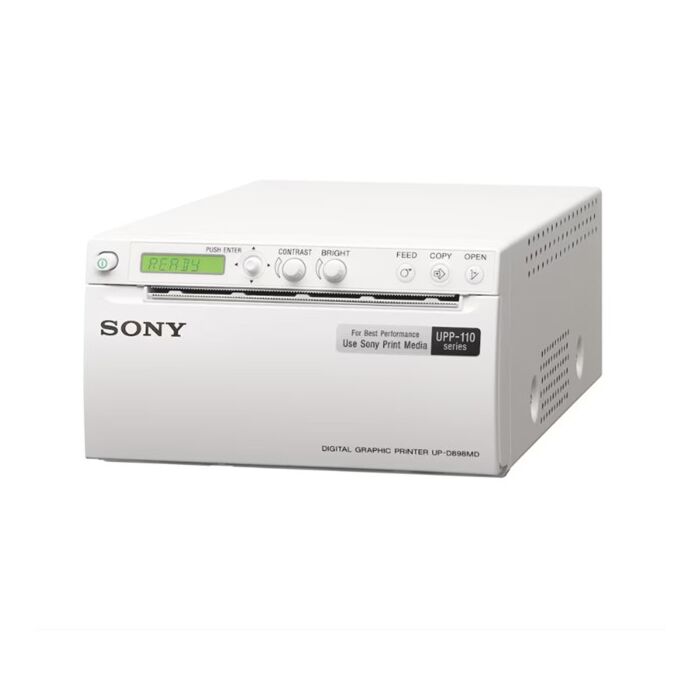

Sony UP-D898MD Digital Black & White Medical Printer – A6 Thermal Printer for Ultrasound, C-Arm, and Cardiac Imaging

The Sony UP-D898MD Digital Black & White Medical Printer combines speed, quality, and compact efficiency to deliver crisp A6 thermal prints in under two seconds. Designed for seamless integration into a variety of medical imaging systems—including digital ultrasound, mobile C-arms, and cardiac catheterization labs—this advanced printer provides high-resolution reference images for patient records and referrals.

An upgraded successor to the Sony UP-897 series, the UP-D898MD retains its compact footprint while introducing significant ergonomic and operational improvements. The enhanced LCD display and intuitive joystick navigation simplify setup and control, while the dual cutter system allows for flexible installation and smooth operation in any workspace.

Sony’s advanced thermal printing technology delivers 325 dpi resolution and 256 grayscale levels for clear, detailed prints using widely available print media (UPP-110HD, UPP-110HG, UPP-110S). Its durable design supports high-volume clinical environments, ensuring consistent performance and reliable hard copies for medical documentation.

Note: Images printed from the UP-D898MD are intended for reference use only and are not to be used for diagnostic purposes.

Key Features:

• High-speed thermal printing — A6 prints in under two seconds

• Compact, space-saving design ideal for mobile carts and imaging suites

• Dual cutter system for flexible installation (upper and lower cutters)

• Large LCD display with joystick control for easy operation

• High-quality 325 dpi black and white prints with 256 levels of grayscale

• Compatible with UPP-110HD, UPP-110HG, and UPP-110S media

• Supports USB 2.0 connectivity for smooth data transfer

• Reliable and durable design suited for clinical environments

• Compatible with Windows 7, 8, and 10 (32/64-bit) systems

Specifications:

• Printing Method: Direct thermal printing

• Resolution: 325 dpi

• Gradations: 8-bit (256 levels)

• Image Area: 320 x 100 mm (12.6” x 4”)

• Paper Width: 110 mm (4.3”)

• Print Speed: 1.9 sec (high-speed) / 3.3 sec (normal mode)

• Interface: Hi-Speed USB (USB 2.0)

• Power Requirements: AC 100–240V, 50/60 Hz

• Dimensions: Compact A6 design

• Operating Temperature: 5°C–40°C (41°F–104°F)

• Humidity: 20%–80% (non-condensing)
