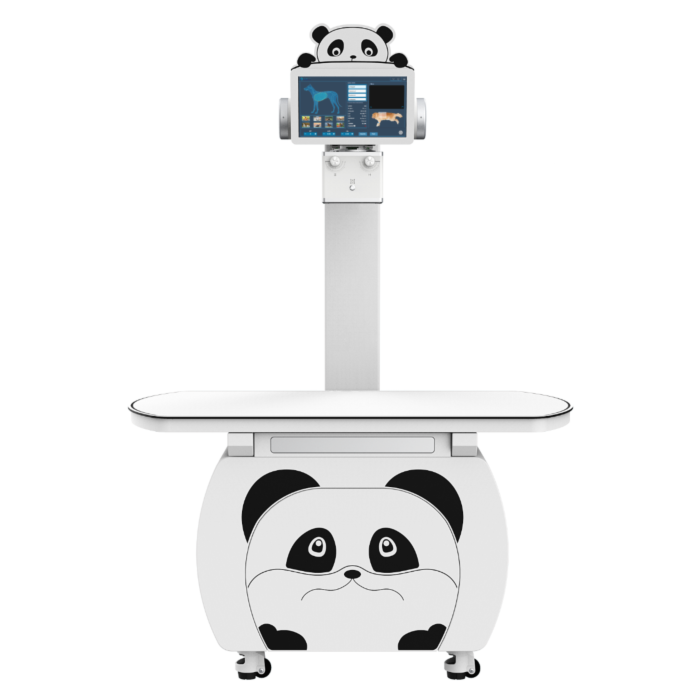

The X-PD Veterinary X-Ray System is a next-generation intelligent radiography platform designed specifically for veterinary clinics that demand exceptional image quality, workflow efficiency, and a low-stress patient experience. Recently recognized as a Fear Free® Preferred Vendor, X-PD supports gentle handling, faster positioning, and reduced retakes—helping keep animals calmer and safer during imaging.
Unlike traditional veterinary X-ray systems, X-PD features a patented Automatic Thickness Detection (ATD) system built into its smart collimator using a 3D camera. The system automatically measures the patient’s anatomy and calculates optimal exposure values (kVp and mAs), eliminating guesswork and dramatically reducing repeat exposures. This not only improves diagnostic accuracy but also minimizes radiation dose and exam time.
The Smart X Intelligent Generator operates as a stand-alone system and is universally compatible with flat panel detectors and acquisition software from any manufacturer—giving clinics the freedom to upgrade without being locked into proprietary platforms.
The 4-way floating veterinary table with integrated urine track and “Panda” low-stress design makes positioning easier for technicians and more comfortable for animals. The LED smart collimator provides precise beam control and anatomical recognition, improving consistency while lowering stress for both staff and patients.
X-PD is ideal for small animal clinics, specialty practices, and Fear Free-focused hospitals that want premium performance, gentle patient handling, and future-proof imaging technology.
Key Benefits
• Fear Free® Preferred Vendor certified
• Automatic anatomy thickness detection (ATD)
• Smart collimator with 3D camera technology
• Reduces repeat exposures and exam time
• Universal detector and software compatibility
• 4-way floating veterinary table with urine track
• Stand-alone smart generator operation
• Designed for low-stress animal positioning
• Supports improved workflow and image consistency
System Specifications
• System Type: Smart Veterinary X-Ray Imaging System
• Table: 4-way floating Panda design with urine track
• X-Ray Tube: Canon E7239, 1.0 / 2.0
• Generator: 32 kW high-frequency smart generator
• kV Range: 125–150 kV
• Tube Current: 400 mA
• Collimator: LED smart collimator with ATD 3D camera
• Monitor: 15.6" white HD touchscreen
• Power: Single phase
• HV Cable: 3.5 m
• Controls: Dual footswitch
• Computer: Mini-PC with software preloaded
Optional Accessories
• Monitor arm for secondary display
• Extension board for large animal imaging
• Veterinary restraining straps
