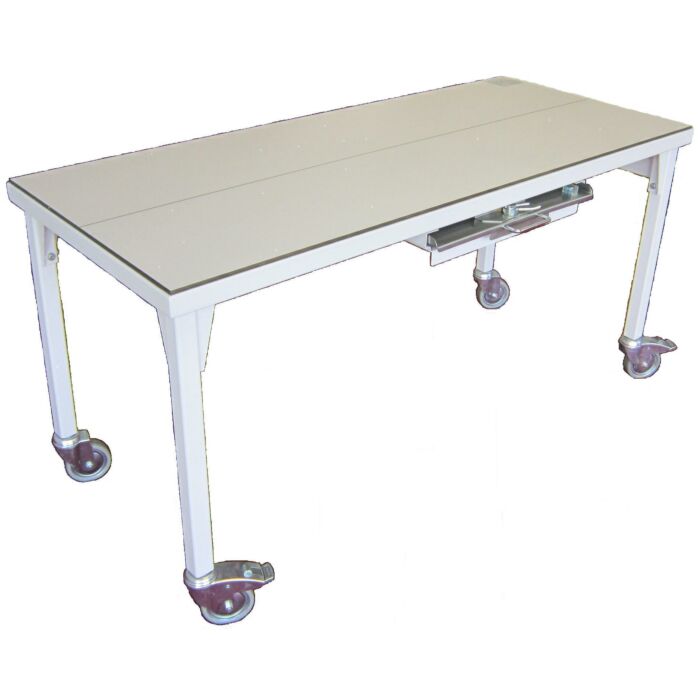

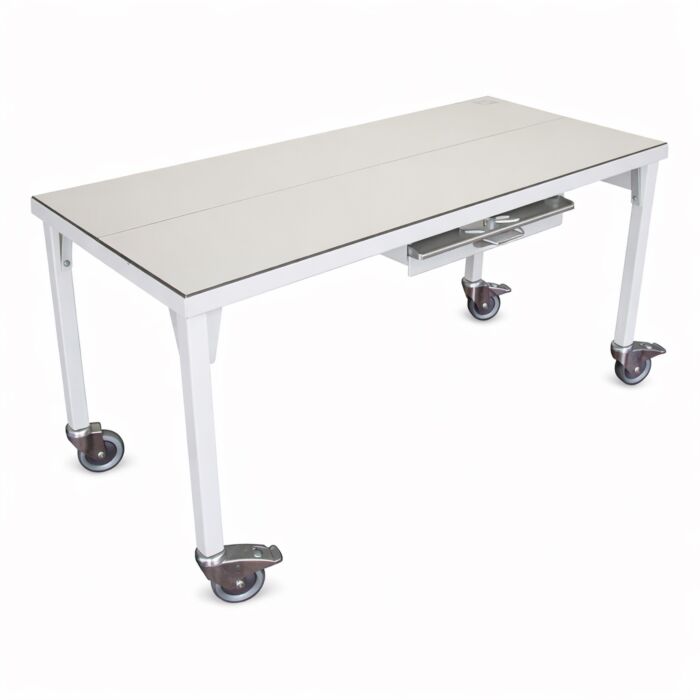

The A3199 Mobile X-Ray Table is a hospital-grade radiographic table designed to provide outstanding stability, radiolucency, and long-term durability for everyday imaging procedures. Built on a heavy-duty steel frame, the table delivers maximum rigidity while supporting patients up to 300 lbs (136 kg), ensuring safe, stable positioning during radiographic exams. The radiolucent tabletop is engineered to reduce radiation scatter, lower patient dose, and help extend X-ray tube life while maintaining excellent image quality. With a fixed table height of 28" (71 cm), the table allows for easy patient transfer and efficient workflow for technologists.
The A3199 is available in two table lengths—56" (142 cm) and 76" (193 cm)—both featuring a 24" (61 cm) standard width. An optional 12" drop-leaf extension can be added to either side to provide additional patient or accessory support when needed, with a 20 lb load capacity.
For imaging flexibility, the integrated grid cabinet and cassette tray travel laterally across the table—20" on the 56" model and 40" on the 76" model—allowing technologists to position detectors anywhere along the imaging path. The included 103 LPI, 8:1 ratio grid supports 17" x 17" DR panels or cassettes, making the table compatible with modern digital radiography workflows.
Designed and manufactured by a trusted name in radiographic equipment, the A3199 Mobile X-Ray Table delivers dependable performance, hospital-grade construction, and long-term value for imaging departments of every size.
Key Benefits
• Heavy-duty steel frame for maximum rigidity
• Radiolucent tabletop supports patients up to 300 lbs
• Reduces radiation scatter and improves image quality
• Fixed 28" table height for easy patient access
• Integrated grid cabinet and cassette tray included
• Full-length grid travel for flexible imaging positioning
• Compatible with 17" x 17" DR panels
• Optional 12" drop-leaf extension
• Mobile design allows table to be moved when not in use
• FDA approved for human use
Specifications
• Model: A3199 Mobile Radiographic Table
• Patient Capacity: 300 lbs (136 kg)
• Table Height: 28" (71 cm)
• Table Width: 24" (61 cm)
• Table Lengths Available: 56" (142 cm) or 76" (193 cm)
• Frame: Heavy-duty steel
• Tabletop: Radiolucent
• Grid: 103 LPI, 8:1 ratio (included)
• Cassette Size: Accommodates 17" x 17" DR panels
• Grid Travel:
– 20" on 56" table
– 40" on 76" table
• Drop Leaf: Optional 12" (20 lb capacity, right or left side)
• Assembly: Ships assembled except for leg installation
• Regulatory: FDA approved for human use
